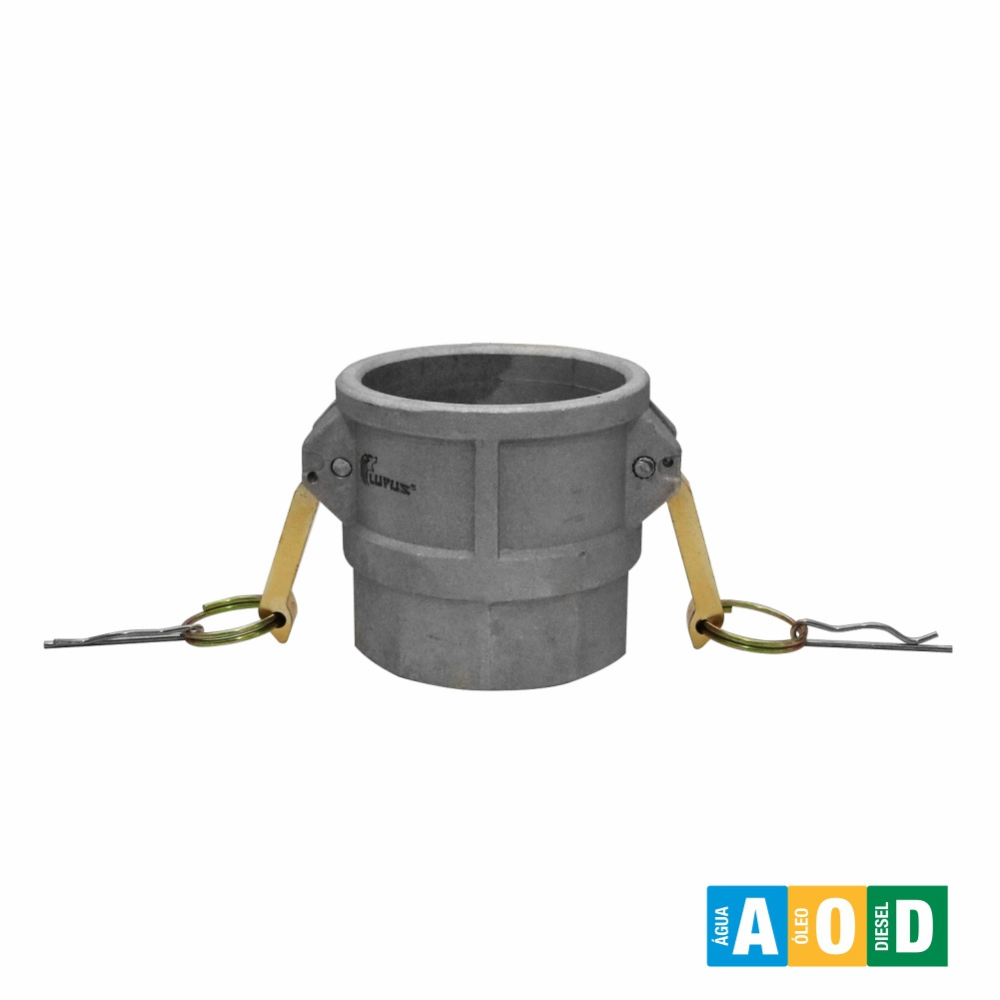

Conexão Camlock – 1336 a 1347 – Acoplador Tipo D – Rosca Bsp F – Lupus
O Engate Camlock, também conhecido como Conexão Camlock, Acoplador Camlock ou Adaptador Camlock, é a solução ideal para o transporte eficiente e seguro de fluidos em diversas aplicações industriais. Este versátil dispositivo de conexão é projetado para oferecer simplicidade e confiabilidade em sistemas de tubulação, permitindo a rápida e segura conexão e desconexão de mangueiras, tubos e equipamentos.
Description
Additional information
Condição | Novo |
---|---|
Codigo | 1336, 1337, 1338, 1339, 1340, 1341, 1342, 1343, 1344, 1345, 1346, 1347 |
Acoplador | 1.1/2", 1.1/4", 1", 1/2", 2.1/2", 2", 3", 3/4", 4", 5", 6", 8" |
Conexão | Ø 1.1/2", Ø 1.1/4", Ø 1", Ø 1/2", Ø 2.1/2", Ø 2", Ø 3", Ø 3/4", Ø 4", Ø 5", Ø 6', Ø 8" |
Pressão Máxima de Trabalho | 100 psi, 125 psi, 150 psi, 250 psi, 75 psi |
Peso | 0,067 Kg, 0,091 Kg, 0,125 Kg, 0,227 Kg, 0,268 Kg, 0,289 Kg, 0,386 Kg, 0,492 Kg, 0,911 Kg, 1,254 Kg, 1,795 Kg, 3,975 Kg |
Medida Conexão Camlock | (A) 100mm x (Φ) int. 176,65mm, (A) 147,83mm x (Φ) int. 231mm, (A) 47,17mm x (Φ) int. 24,29mm, (A) 49,70mm x (Φ) int. 32,08mm, (A) 61,45mm x (Φ) int. 37,09mm, (A) 69,95mm x (Φ) int. 46,38mm, (A) 73,23mm x (Φ) int. 54mm, (A) 75,11mm x (Φ) int. 64,10mm, (A) 83mm x (Φ) int. 76,64mm, (A) 90,53mm x (Φ) int. 91,52mm, (A) 94,25mm x (Φ) int. 119,23mm, (A) 95mm x (Φ) int. 146,6mm |
