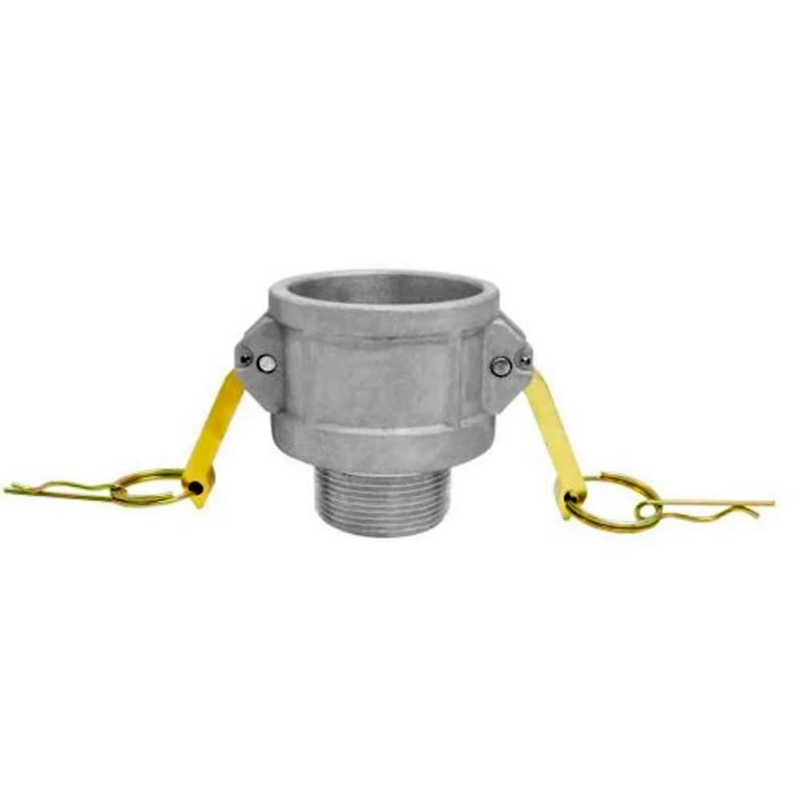

Conexão Camlock – 1312 a 1323 – Adaptador Tipo B – Rosca Bsp M – Lupus
O Engate Camlock, também conhecido como Conexão Camlock, Acoplador Camlock ou Adaptador Camlock, é a solução ideal para o transporte eficiente e seguro de fluidos em diversas aplicações industriais. Este versátil dispositivo de conexão é projetado para oferecer simplicidade e confiabilidade em sistemas de tubulação, permitindo a rápida e segura conexão e desconexão de mangueiras, tubos e equipamentos.
Description
Additional information
Acoplador | 1.1/2", 1.1/4", 1", 1/2", 2.1/2", 2", 3", 3/4", 4", 5", 6", 8" |
---|---|
Condição | Novo |
Conexão | Ø 1.1/2", Ø 1.1/4", Ø 1", Ø 1/2", Ø 2.1/2", Ø 2", Ø 3", Ø 3/4", Ø 4", Ø 5", Ø 6', Ø 8" |
Pressão Máxima de Trabalho | 100 psi, 125 psi, 150 psi, 250 psi, 75 psi |
Medida Conexão Camlock | (A) 143,08mm x (Φ) int. 230mm, (A) 50,17mm x (Φ) int. 25,15mm, (A) 53,29mm x (Φ) int. 32,34mm, (A) 58,25mm x (Φ) int. 37,17mm, (A) 65,46mm x (Φ) int. 45,92mm, (A) 69,93mm x (Φ) int. 54,05mm, (A) 75,15mm x (Φ) int. 64,08mm, (A) 84,32mm x (Φ) int. 76,40mm, (A) 91,91mm x (Φ) int. 92,62mm, (A) 95,19mm x (Φ) int. 144,33mm, (A) 95,24mm x (Φ) int. 119,80mm, (A)102,85mm x (Φ) int. 176mm |
Codigo | 1312, 1313, 1314, 1315, 1316, 1317, 1318, 1319, 1320, 1321, 1322, 1323 |
Peso | 0,063 Kg, 0,097 Kg, 0,109 Kg, 0,186 Kg, 0,244 Kg, 0,275 Kg, 0,401 Kg, 0,563 Kg, 0,673 Kg, 1,034 Kg, 1,376 Kg, 3,489 Kg |
